YAG+Cr:YAG+Nd:YAG
Diffusion Bonding Crystals Modules



Diffusion Bonding Crystals Modules

Diffusion Bonded Crystals Modules(DBM) are crystals consisting of two, three or more parts with different doping levels or different dopant, usually one laser crystal and one or two undoped crystals combined by optical contact and further bonded under high temperature.

ULTI Crystal is a leading manufacturer of finished composite crystal and glass components for solid-state lasers in China. We hold special diffucsion bonding technology, which enables the joining of crystal materials without the use of an adhesive or an organic or inorganic bonding aid. This innovative technology reduces thermal lens effect of laser crystals, provides integral components to make compact lasers.

Our diffusion bonding crystals mudles allows for the separation of functionalities of laser components into lasing and non-lasing regions, which is critical for high power DPSSL systems. Our module offer a new degree of freedom for the design engineer's realization of rugged, compact, solid state laser systems.

We are support below standard diffusion bonding cyrstals modules:

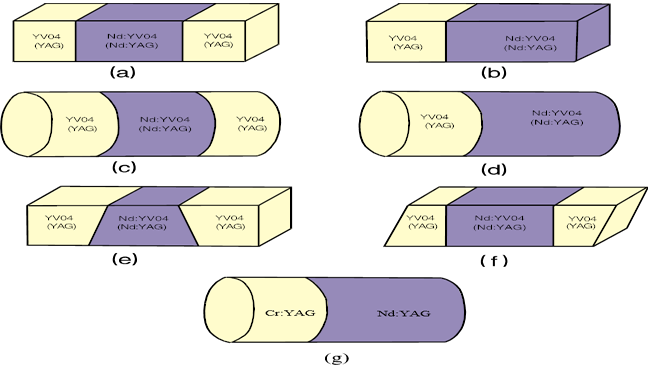

Slab, Disk, Rod diffusion bonding crystals modules
We have product lines of various Slabs, Disks and Rod-based diffusion bonding technology modules.

Vanadate diffusion bonding crystals modules
Based diffusion bonding technology YVO4 or GdVO4 components are extremely useful for higher power in YVO4-based laser systems. Undoped end-caps increase damage threshold by separating the pump input face with the lasing doped portion. We produce slabs and rods with plano or spherical end faces.

Microchip diffusion bonding crystals modules
Based diffusion bonding technology microchips, especially in the form of Nd:YAG/Cr4+:YAG passively q-switched microchips have found a host of applications due to their compact size and the incorporation of both the lasing material and q-switch into a monolithic element. This approach minimizes system complexity and system size, and maximizes efficiency.

We have become well known for its ability to produce crystals of larger sizes than previously possible. We are also interested in discussing and manufacturing new material combinations and structural geometries. It is our goal to provide high-quality composites that will provide a solution for your system's needs, so we encourage any design submissions for review. Please contact us for more information and technology supports.

Details Information   Characteristic data
»| Diffusion bonding crystals modules Applications
»|
Diffusion bonding crystals modules Features
»| The properties of d iffusion bonding crystals modules
»| Notes Related Pages
»| Download PDF documents pdf


Standard Product List
Code
Bonding Material
Finish Size,mm
Shape
End face Configuration
Specs documents
Download (pdf)
Price
DMP-101
(YAG)+(Nd:YAG)
5x5x40
Slab
Flat/Flat
the detailed specs
DMP-102
(YAG)+(Cr4+:YAG)
9x9x6
Slab
Flat/Flat
the detailed specs
DMP-103
(YAG)+(Cr4+:YAG)
2x3x7
Slab
Flat/Flat
the detailed specs
DMP-104
(YAG)+(Cr4+:YAG)
5x5x38
Slab
Flat/Flat
the detailed specs
DMP-105
(Nd:YAG)+(Cr4+:YAG)
Ø12.7x3.35
Rod
Flat/Flat
the detailed specs
DMP-106
(YAG)+(Nd:YAG)+(YAG)
Ø8x164
Rod
Concave/Concave
the detailed specs
DMP-107
(YAG)+(Nd:YAG)+(YAG)
Ø4x12
Rod
Flat/Flat
the detailed specs
DMP-108
(YAG)+(Nd:YAG)+(Cr4+:YAG)
Ø4.5x40
Rod
Flat/Flat
the detailed specs
DMP-109
(YAG)+(Nd:YAG)+(Cr4+:YAG)
5x5x43
Slab
Flat/Flat
the detailed specs
DMP-110
(YAG)+(Nd:YAG)
+(Cr4+:YAG)+(YAG)
Ø3x6.5
Rod
Concave/flat
the detailed specs
DMP-111
(YAG)+(Cr4+:YAG)
+(Nd:Ce:YAG)+(YAG)
Ø5x105
Rod
Flat/Flat
the detailed specs

Notes
  »| Materials that can be diffusion bonding include common laser host media such as oxides,fluorides, vanadates, crystals as well as glasses. Please contact us to advsie your requirement.
  »| Custom size is available upon requested.
